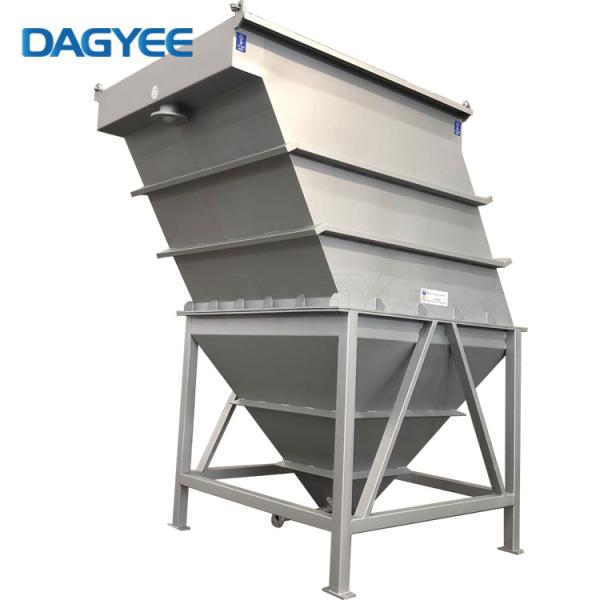

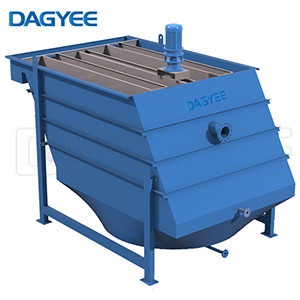

1-200 M3/H Sedimentation Tank Sludge Thickener
Lamella Plate Clarifier
Total Suspended Solids (TSS) will naturally settle over time due to gravity, but this process can be sped up and improved by having an Inclined Plate. Water flows up the plate at a 60° angle. Gravity will force the solids to settle onto the plate. The particles collect on the plates will become heavier and slide back down the plate to the clarifier cone. This process creates a counter flowing pattern, where the solids are seperated from the liquid into two lanes of traffic. The water flows in the upward bound lane, and the sludge flows in downward lane. This method reduces drag and friction creating a faster settling process than if the solids were to settle naturally.
Flocculants and Coagulants are added to improve the settling time. Coagulants neutralize the negative charge particles allowing them to sink faster. Flocculants allow for the small particles to collect and accumulate. This will make the solids heavier and easier to settle.
Benefits
Save space
Space requirement can be reduced by up to 80% when compared with a settlement tanks.
More reliable
Unique patented flow control system increases reliability. The use of plates with side entry rather than tubes increases capacity and prevents the sludge being disturbed.
More settling
Up to 10 m2 of settling area per square metre of ground area.
Optional configuration
Available as a free-standing unit or supplied as plate packs for installation into concrete or steel tanks. Plates can be supplied with variable spacings of 50, 60, 80 and 100 mm to suit the sludge characteristics.
Low cost
No power requirement so has minimal operating costs.
Applications
- Primary clarification of wastewater.
- Wash water recirculation systems.
- Raw water clarification.
- Wash water settlement.
- Sludge settlement.
- Wet scrubber and slaking effluents in the power industry.
- Thickening processes in the chemical, mining and mineral industries.
- Treatment of effluents in metal finishing, and iron and steel plants.
Product Features
- Structural steel support legs
- Epoxy painted carbon steel tank
- Individually removable FRP
- plates
- Adjustable effluent weir plates
- Standard units can be
- manufactured for flows from 5
- gpm to 3000 gpm and above in
- a single above-grade tank
- One-piece prefabricated units
- are available with up to 1000 sqft
- of effective settling area
- Single tank construction with
- integral flash mix/flocculation
- compartments for smaller units
- Multiple sample connections
| 50M3/hr Lamella Clarifier Specifications |
| Parameter | Units | DCL-050 |
| Flow Rate | m3/h | 0-50 |
| Effective Settling Area | m2 | 50 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 4.65*2.82*3 |
| Inlet | Inch | 8 |
| Effluent | Inch | 8 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 4500 |
| Voltage | Standard | 380V/3Phase/50H |
STANDARD INCLUSIONS + OPTIONS
✓= Standard Supply, o = Optional Supply |
| Lamella Body Epoxy Coated Carbon Steel | ✓ |
| Feed Pump | o |
| Floculator Tanks | o |
| Flash & Floc Mixers | o |
| Sludge Scraper | o |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ |
| Standard Controller | ✓ |
| Lamella Body – 304ss | o |
| Lamella Body – 316ss | o |
| Variable Speed Mixer | o |
| Access Platform and Ladder | o |
| Sludge Hopper Actuated Valve | o |
| Sludge pump | o |
Example Removal Performance
| Application | Removals |
| Primary clarification | 50% to 70 % TSS removal (without chemicals) |
| Raw water clarification | 2 NTU |
| Washwater settlement | 5 NTU |
| settlement | 30 mg/l TSS 95%ile |
