Dagyee DT1340 1500 Capacity Powder Dosing Issolving And Metering Unit System
DAGYEE all in one polymer preparation system is used for the dosing of liquid powder flocculants. It can be widely used in water treatment applications in wastewater, papermaking, chemical, petrochemical and mineral processing industries.
Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.
The Specification Of Dissolver Dosing Device
| Model | DT1340 |
| Capacity(L/h) | 1500 |
| Power(kw) | 1.7 |
| Powder dosage(kg/h) | 1-2 |
| Water inlet flow(m3/h) | 0.8-4 |
| L(mm) | 2130 |
| B(mm) | 1120 |
| H(mm) | 1620 |
| L1(mm) | 2050 |
| B1(mm) | 1070 |
| Net weight(kg) | 560 |
The Feature Of Dissolver Dosing Device
-
Fully automatic operation including automatic dosing, dissolving and feeding.
-
The highly precise dry polymer dosing device and the well-designed heater device can prevent the polymer from caking.
-
The dosage of dry powder and water can be adjustable, so the solution with any concentration can be prepared.
-
Optional: Vacuum feeding machine.
-
Optional: on-line dilution system.
-
Tank material: SS304 or SS316l, Polypropylene PP, FRP etc.
The Application Of Dissolver Dosing Device
-
It is especially suitable for municipal sewage treatment plants, industrial waste water treatment and other industries which need to add flocculant solution.
-
It is widely used in sludge dewatering machine, wastewater treatment and various processes (food, chemical industry, dyeing and finishing, papermaking etc.) When the powder is dissolved and added.
-
It is suitable for dissolving and adding all kinds of dry powder, granule, flocculant and concentrated liquid powder.
The Service Of Company
Our extensive product range represents a unique combination of design, development and implementation know how. With a wide and ever evolving range of products and ancillaries, we can offer specific and comprehensive solutions for a variety of industrial applications. Our solutions are conceived to fit seamlessly into your operation, optimizing the processes and applications.
|
|

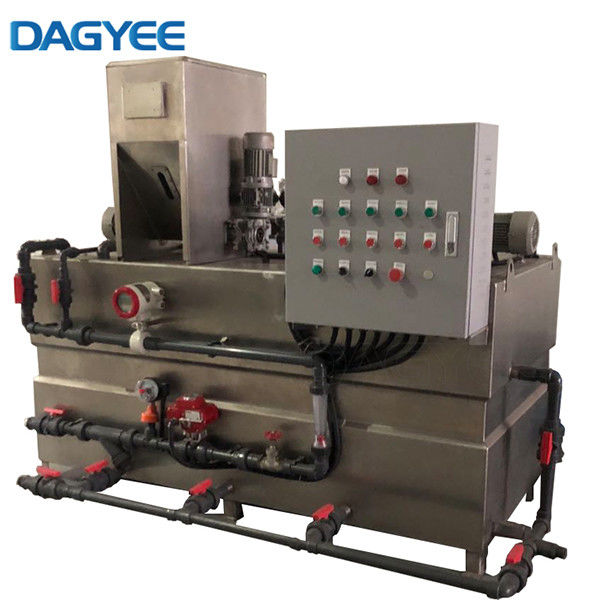

Chemical Dosing Device Polymer Powder Preparation Kit Wastewater Treatment Machinery Images
|
